I’m troubleshooting random disconnects and data corruption on a couple of RS-232/USB serial devices and I’m not sure if the issue is with my cables, adapters, or the ports themselves. I’d like to find a reliable serial port tester (hardware or software) that can help me pinpoint signal issues, monitor traffic, and stress-test the connection. What tools or testers are you using that have worked well for diagnosing serial port problems in real-world setups?
For RS‑232 issues like yours, I’d split it into two parts: software analysis and physical checks.
- Software side
For Windows, I recommend Serial Port Monitor from Eltima. It hooks into the serial stack and shows:
- All read/write data in hex and ASCII
- Control line changes (RTS, CTS, DTR, DSR, DCD)
- Open/close events and errors
This helps you see if the disconnects come from the device, the USB adapter, or the app. You can log long sessions, then search for framing errors, parity errors, timeout patterns, or when the handle closes. It also lets you compare multiple sessions, which helps when you change cables or adapters and want to see if the error pattern changes.
If you want a simple checklist style walkthrough on testing, configuration, baud rate matching, and typical RS‑232 problems, this guide is helpful:

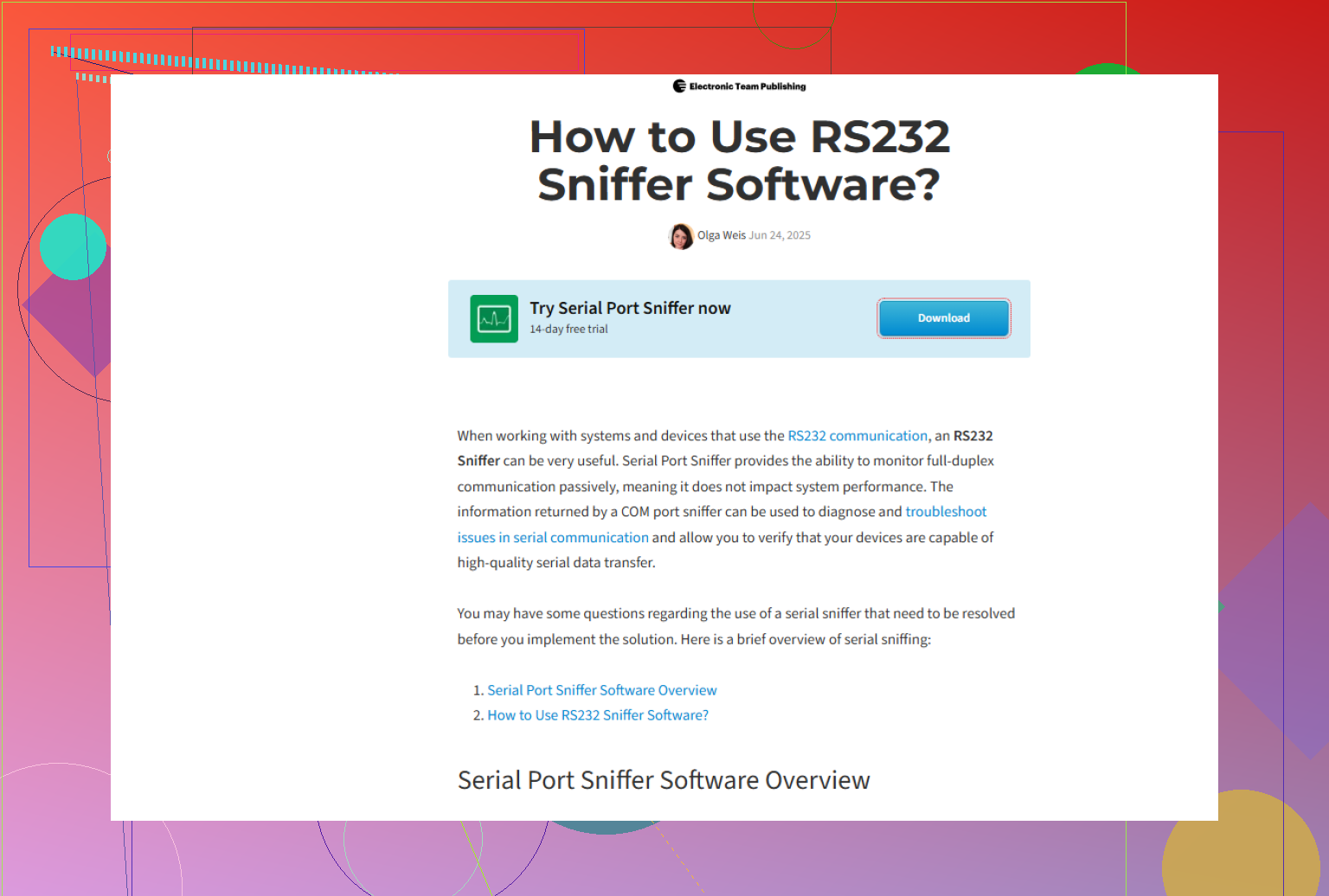

step‑by‑step serial COM port testing guide
- Hardware side
While you run Serial Port Monitor, do this:
- Swap USB‑RS232 adapters. Cheap Prolific clones fail under load. FTDI based ones tend to behave better.
- Test with short, known good shielded cable, 1 or 2 meters.
- Use a loopback plug on TX/RX. Send data from a terminal and see if Serial Port Monitor shows clean echo with no corruption.
- Wiggle the cable and connectors while sending data, see if disconnects align with movement.
- Typical failure points
From similar issues I had on CNC controllers and barcode scanners:
- Wrong or unstable port speed. Device expects 9600 8N1, app uses different settings. Data looks like corruption.
- Marginal power on USB hub. When current spikes, the hub drops the USB‑serial adapter for a split second.
- Ground reference issues between PC and device. Shows up as random framing errors under load.
Run one long test with Serial Port Monitor logging while your app does its normal traffic. When the disconnect happens, check:
- Did the handle close from the app side.
- Did errors spike right before.
- Did control lines drop (DCD, DSR).
You can then say with confidence if you need new cables, a better adapter, or if the problem sits in the software stack.
1 Like
If you’re seeing random disconnects and “mystery” garbage on RS‑232 over USB, you’re right to question everything: cables, adapters, host ports, even the firmware on the target.
Since @chasseurdetoiles already covered the software sniffer & basic hardware swaps, I’ll come at it from a slightly different angle and focus on actual serial port test tooling and isolation strategy.
First, for a proper serial communication analyzer that sits on the PC side, I’d still put Serial Port Monitor at the top of the list. It’s one of the few tools that can watch the OS-level serial stack in detail without turning your system into molasses. If you want to try it in your own setup, grab it here:
advanced serial port diagnostics tool
Where I disagree a bit with @chasseurdetoiles is on relying only on loopback + software logs. That’s good for sanity checks, but it won’t catch everything, especially USB hiccups or borderline signal levels. I’ve had “perfect” loopback tests while a flaky adapter still dropped the link under real load.
Here’s what I’d add:
-
Inline hardware monitor
If you can get your hands on a cheap RS‑232 protocol analyzer or even an old-school breakout box with LEDs for TX/RX and control lines, plug it between the USB‑RS232 dongle and the device.- Watch for flickering or drops on CTS/DSR/DCD at the moment your disconnect occurs.
- If the LEDs go dark while the PC still thinks the port is open, that screams hardware or cable, not software.
-
Compare two independent paths
- Path A: Your current USB‑RS232 adapter + normal cable.
- Path B: A totally different adapter brand plus a short shielded cable.
Run the same workload on both, preferably in parallel if you have two ports. - If only Path A corrupts data, it is almost never the app.
- If both show identical errors at the same time, suspect the device or host power / ground.
-
Stress test at “bad” settings on purpose
This is the part a lot of people skip. Crank the baud rate higher than you plan to use and blast a big binary file repeatedly:- If corruption appears only at high speed and goes away when you lower the rate, you’re dealing with marginal signal integrity, cable length, or crappy adapter silicon.
- If corruption is completely random and independent of baud, look at power issues or a flaky USB host controller.
-
USB‑side diagnostics
Serial tools are great, but don’t ignore USB behavior. On Windows:- Check Event Viewer for “USB device reset” or disconnect/reconnect spam right when your serial link dies.
- If those events line up with your serial issues, the RS‑232 layer is innocent. Replace the adapter or move it off hubs, especially bus‑powered ones.
-
Try an isolated USB‑RS232 adapter
If your devices are noisy, grounded oddly, or on big industrial machines, you can see random framing errors that no amount of reconfiguring will “fix.”- An adapter with galvanic isolation often magically makes the “random” corruption vanish.
- This is especially true if you’re seeing issues only when motors, relays, or high‑current loads switch.
-
Pattern testing instead of just “real data”
Use a terminal or small script that sends test patterns:- 0x55 / 0xAA alternation
- Full byte sweep from 0x00 to 0xFF
- Long runs of the same byte (0x00 or 0xFF)
Capture the result in Serial Port Monitor and compare sent vs received. Certain types of corruption (like dropped MSB or bit‑shift) can tell you a lot about what’s failing.
To your original ask for a “reliable serial port tester”: using a PC-based serial communication analyzer like Serial Port Monitor plus a simple hardware breakout/LED box is usually enough to confidently say “this is the cable,” “this is the adapter,” or “this is the device firmware losing its mind.” Once you’ve got logs on both sides of the supposed failure window, you’re not guessing anymore, you’re just following the evidence.
